Durma AD-S Pressbrake
Durma AD-S Pressbrake - Image 2
Durma AD-S Pressbrake - Image 3
Durma AD-S Pressbrake - Image 4
Category: Condition: Brand: Durma

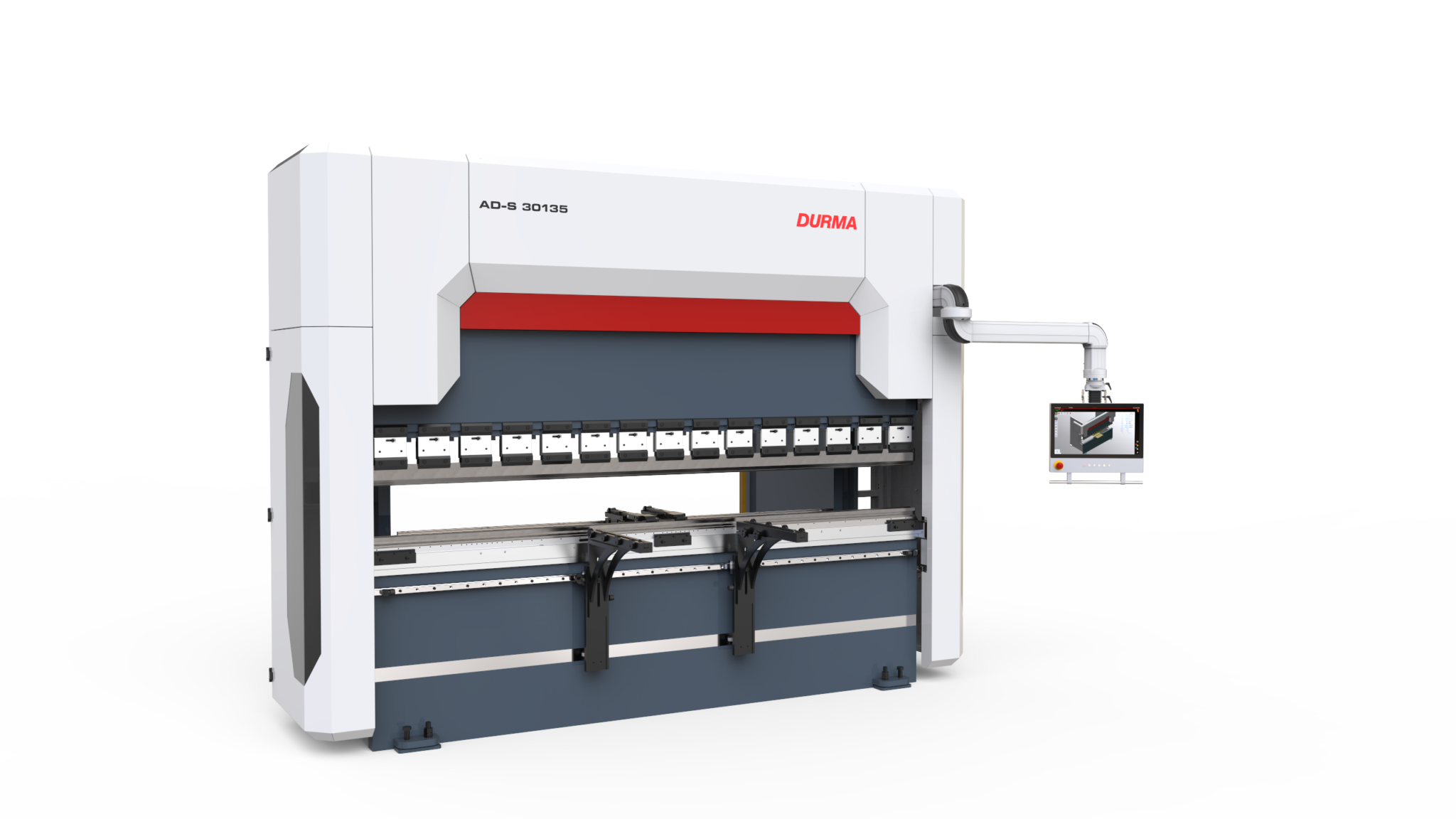

Durma AD-S Pressbrake

Durma AD-S series Pressbrakes are designed with high technology to increase efficiency on precise part bending. Bending performance is increased by using high quality European parts.

ENQUIRE NOW
CATALOGUE

Description

The Durma AD-S is the superior model of Pressbrake offered at Acra Machinery. The possibilities & fearutres offered on this series are near infinite providing faster setup & part production reducing down time along with the large stroke, throat depth & daylight as seen on the AD-R. The AD-S comes standard with a 3D Graphical Controller with options for offline software & various levels of automation. Contact a representative to find out how we can fulfill your requirements today!

  • 5-axis (Y1, Y2, X, R & CNC Controlled Motorized Crowning)
  • Cybelec CNC ModEva 19T Colour Graphic Control Unit
  • CE Safety
  • Height Adjustable Finger Blocks
  • Servo Driven Motorized Ballscrew Backgauge w/ Linear Guides

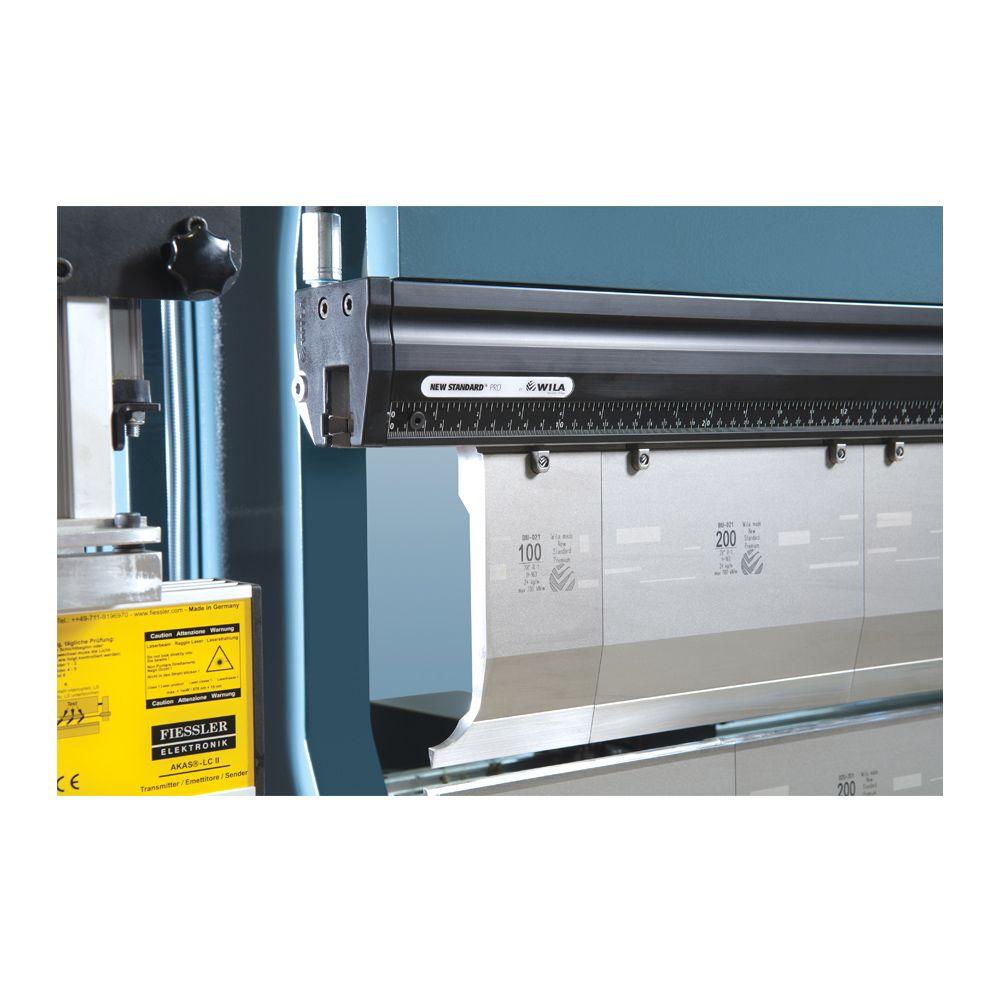

  • European Clamping System
  • European Style Bottom Tool Holder
  • Sliding Sheet Support Arms w/ T-Channel & Tilting Stop
  • Bosch Rexroth Hydraulics
  • Siemens Electrics
  • Euram Top & Bottom Tooling (835mm lengths & 1 sectioned 835mm length)

  • Cybelec CNC ModEva Premium Colour Graphic Control Unit
  • Delem CNC DA 66T or 69T Colour Graphic Control Unit
  • Z1 & Z2 Axis
  • X1 & X2 Axis
  • R1 & R2 Axis
  • Delta X-axis (125mm stroke)
  • DBEND CAD/CAM Importing & Simulation Program
  • Automatic Sheet Follower System w/ Motorized Elevation Adjustment
  • Parking Area for Sheet Followers
  • Front Feeding System w/ Pnuematic Pushers
  • Laser Angle Measurement
  • Quick Release Clamping
  • Wila Hydraulic/Pnuematic Tool Clamping System
  • Bottom Tool Seperation System
  • Central Lubrication System
  • Oil Heating/Cooling
  • Electrical Cabinet Air Conditioning
  • Additional Backgauge Fingers
  • Additional Sliding Front Support Arms
  • Additional Stroke
  • Additional Throat Depth
  • Backgauge Support Table (for Lighting Poles)
  • Tandem Operation & Additional Foot Pedal

Durma AD-S Pressbrake – Technical Specifications
