Category: Condition: Brand: Durma

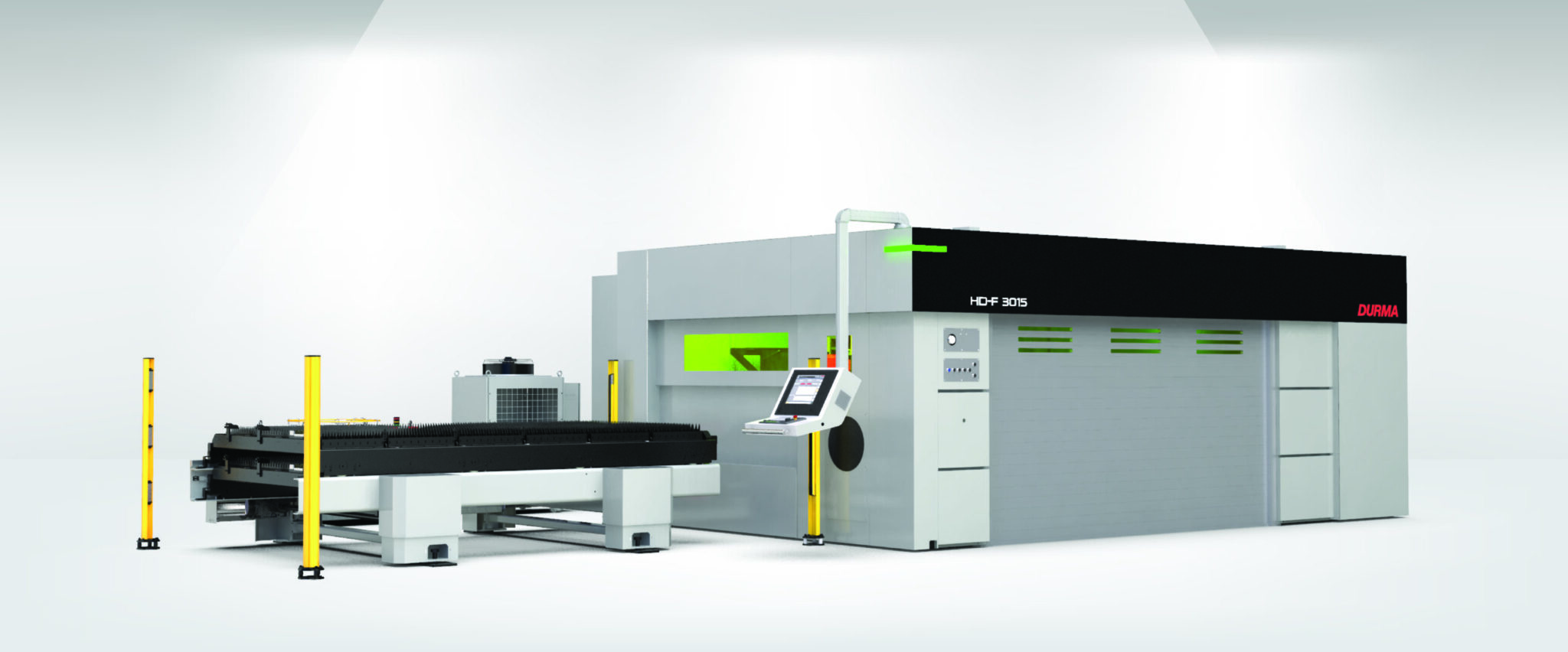

Durma HD-F Fibre Laser

Durma HD-F series IPG Fibre Lasers outshine fellow CO2 Lasers with their fast cutting & energy efficient abilities.


The Durma HD-F Series Fibre Laser contains a rigid body structure, compact design & high levels of efficiency & user-friendliness. Axis motion is achieved by either rack & pinion or linear guided system (HD-FL) depending on the users requirements; HD-F machines are manufactured with high precision two-day, helical racks w/ low clearance make it possible to achieve high acceleration (synchronized 28m/sý), speed (synchronized 170m/min) & accuracy (0.05mm). Whereas, HD-FL machines are driven by high velocity & acceleration linear motors; acceleration (synchronzied 35m/sý), speed (synchronized 226m/min) & accuracy (0.03mm). Acra Machinery can supply Fibre Lasers w/ IPG power ranging from 0.5kW – 10kW, contact one of our representatives to find out more today!

  • IPG Fibre Laser Source
  • Chiller
  • Compact Dust Extraction (Filter)
  • CE Automatic Shuttle Table
  • Siemens Sinumerik 840D SL Control Unit
  • Automatic Focus Precitec Procutter Laser Cutting Head
  • Automatic Sheet Position & Dimension Sensing System
  • Laser Diode Positioning
  • Automatic Nozzle Cleaning
  • Central Lubrication
  • Slug Cars
  • Simple User Interface Parameter Page (Power, Speed, Pressure)
  • External Metalix or Lantek CADCAM Software w/ Autonesting
  • Working Area Illumination
  • Multi-Chamber Exhaust System
  • Warning Lamp
  • CAD/CAM Programming Support & Training
  • Operation Training
  • Remote Service

  • Motorized Slug Parts Transfer Conveyor
  • Laser Cutter Monitoring
  • Linear Drives (X1, X2 & Y-axis)
  • Electrical Panel Air Conditioning
  • Tube Cuting Device (up to ?400mm)
  • Automatic Loading & Unloading Systems
  • Automatic Nozzle Change (Best Suited for Machines w/ Linear Drives + Automatic Loading & Unloading Systems)
  • External Software USB
  • Lantek or Metalix MT Software Licence w/ Integrated Camera
  • Cloud License
  • IP Camera
  • File Transfer
  • Clamps
  • Uninterruptible Power Supply
  • Air Dryer
  • Laser Service Set (Nozzles, Cotton Balls, Acetone, Cleaning Tissues & Ceramics)

Durma HD-F Fibre Laser – Technical Specifications
